DTE Surgery-X : Piezo Bone Surgery Unit + 2 LED Handpieces
- Product code: F2M286
Ultrasurgery Unit for minimally invasive tooth extraction, Intralift, Sinus lift, Alveoloplasty, Apical cyst extraction, Crown extension, Crest Splitting and more.
- The Surgery-X allows for better bone preservation and reduced postoperative recovery time, by providing ultra precise cutting, and regulated tip vibration amplitude.
- The unit provides selective cutting without soft tissue damage and includes cold cutting mode to ensure low heat whilst cutting, and minimal bleeding for a clear view of the operation area.
Improved clinical use and patient benefits with Piezosurgery:
- The optimised handpiece allows for high temperature sterilisation without loss of performance and LED function for clear, precise practice.

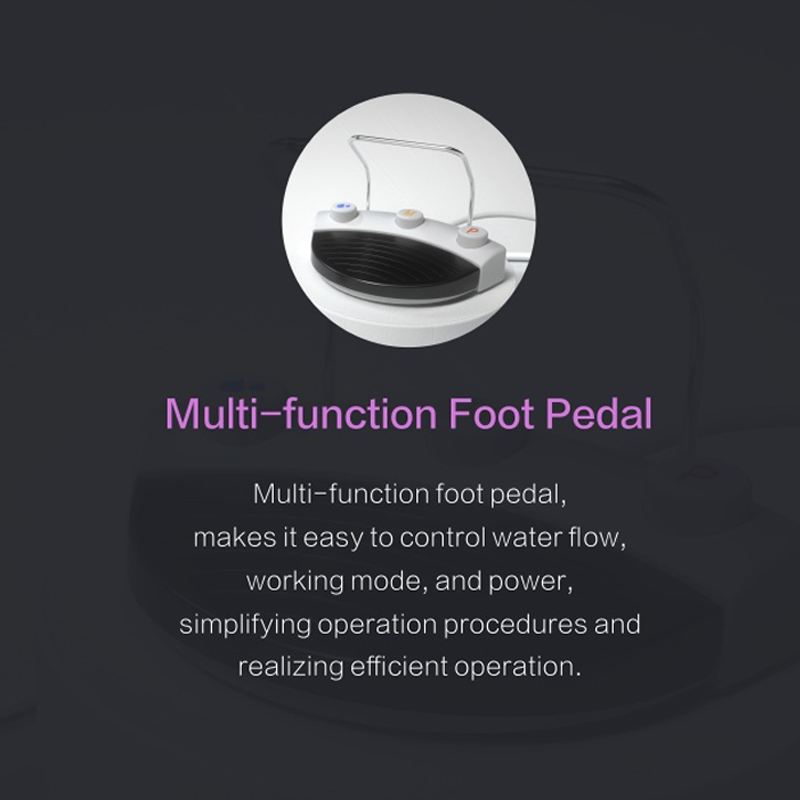

- The Surgery-X boasts a 7-inch touch screen operation, along side 3 way foot pedal controls for optimal use.
- 4 working modes include: Cutting mode, Periodontal mode, Endodontic mode, and Cleaning mode.
- The highly adaptive unit and precise work reduces patient discomfort and recovery time through soft tissue protection and reduced swelling.
Micron Cutting:
- Tip vibration amplitude is between 20-100 micron. Minimum incision is 0.5mm width x 3.5mm length. Work in a small operating area for minimal stress and fast postop recovery.
Soft Tissue Protection:
- No cutting effect for soft tissues (Neural, Blood vessels, Mucous membranes…) to protect the vascular nerve and reduce tissue damage.
Watch the surgery X demo video : DTE Surgery-X Introduction
DTE Surgery-X : Piezo Bone Surgery Unit + 2 LED Handpieces
- Product code: F2M286
Ultrasurgery Unit for minimally invasive tooth extraction, Intralift, Sinus lift, Alveoloplasty, Apical cyst extraction, Crown extension, Crest Splitting and more.
- The Surgery-X allows for better bone preservation and reduced postoperative recovery time, by providing ultra precise cutting, and regulated tip vibration amplitude.
- The unit provides selective cutting without soft tissue damage and includes cold cutting mode to ensure low heat whilst cutting, and minimal bleeding for a clear view of the operation area.
Improved clinical use and patient benefits with Piezosurgery:
- The optimised handpiece allows for high temperature sterilisation without loss of performance and LED function for clear, precise practice.
- The Surgery-X boasts a 7-inch touch screen operation, along side 3 way foot pedal controls for optimal use.
- 4 working modes include: Cutting mode, Periodontal mode, Endodontic mode, and Cleaning mode.
- The highly adaptive unit and precise work reduces patient discomfort and recovery time through soft tissue protection and reduced swelling.
Micron Cutting:
- Tip vibration amplitude is between 20-100 micron. Minimum incision is 0.5mm width x 3.5mm length. Work in a small operating area for minimal stress and fast postop recovery.
Soft Tissue Protection:
- No cutting effect for soft tissues (Neural, Blood vessels, Mucous membranes…) to protect the vascular nerve and reduce tissue damage.
Watch the surgery X demo video : DTE Surgery-X Introduction
4 Working Modes
Cutting Mode:
Adjust power and water, determined by the bone density. Divided into 7 classes. Use classification to avoid over power output and increase safety during procedures:
- Level 5,6 & 7 (Class I Bone) – Suitable for high bone density / Dense cortical bone.
- Level 3 & 4 (Class II Bone) – Suitable for high bone density / Thick cortical bone.
- Level 2 & 3 (Class III Bone) – Suitable for uniform bone density / Good cortical bone.
- Level 1 & 2 (Porotic Bone) – Suitable for low bone density / Poor cortical bone.
Periodontal Mode / Endodontic Mode:
- Power and water volume are adjustable according to requirements.
Cleaning Mode:
- Self cleaning mode – Step on pedal for 3 seconds to confirm mode. The unit will then automatically complete pipe cleaning for 25 seconds. Waterway (including pump line and handpiece) require cleaning after each treatment.
Surgery-X Contents
DTE Surgery-X USER MANUAL
Watch the video : DTE Surgery-X Introduction
Watch the video : Curettage of Left Maxillary Bone Cyst
WARNING: This video contains sensitive and graphic content, including footage of actual surgery.
Please do not watch if affected by such content.
