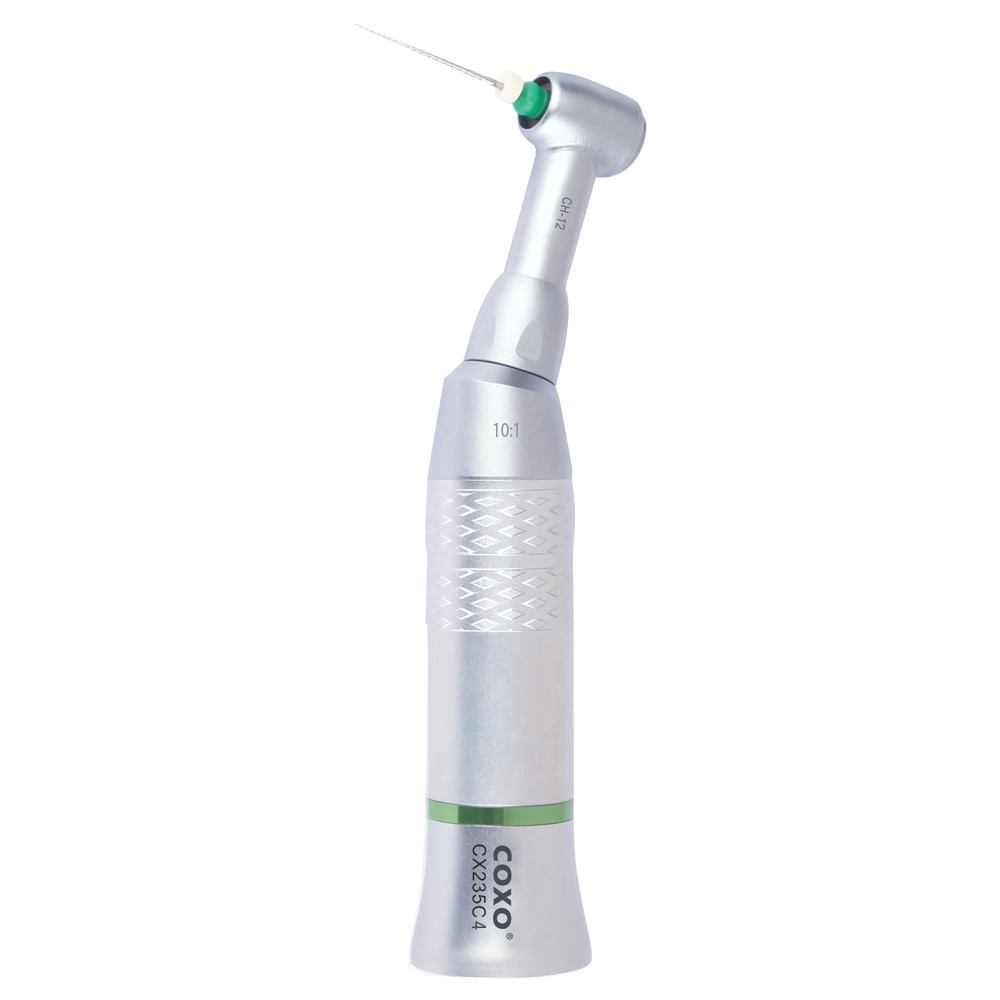

10:1 Speed Reducing 90° Reciprocation Endodontic Contra Angle Handpiece – Push Button
- Product code: F2M507
10:1 Handpiece for use with Endodontic Hand Files & Tools. With Push Button head, and 90° Rotation.
Provides better accuracy and reach for use of hand tools for RCT. Improved stability and reduced hand fatigue.
- Brand: COXO
- Type: CX235C4/5 – Push Button
- 90° Reciprocating Motion
- 10:1 Speed Reduction
- Autoclavable to 134°C
- Max Speed: 4000 rpm
- Head Type: CH-12
- Standard E-Type Connection
- Complies with Coupling Dimensions ISO 3964
10:1 Speed Reducing 90° Reciprocation Endodontic Contra Angle Handpiece – Push Button
- Product code: F2M507
10:1 Handpiece for use with Endodontic Hand Files & Tools. With Push Button head, and 90° Rotation.
Provides better accuracy and reach for use of hand tools for RCT. Improved stability and reduced hand fatigue.
- Brand: COXO
- Type: CX235C4/5 – Push Button
- 90° Reciprocating Motion
- 10:1 Speed Reduction
- Autoclavable to 134°C
- Max Speed: 4000 rpm
- Head Type: CH-12
- Standard E-Type Connection
- Complies with Coupling Dimensions ISO 3964

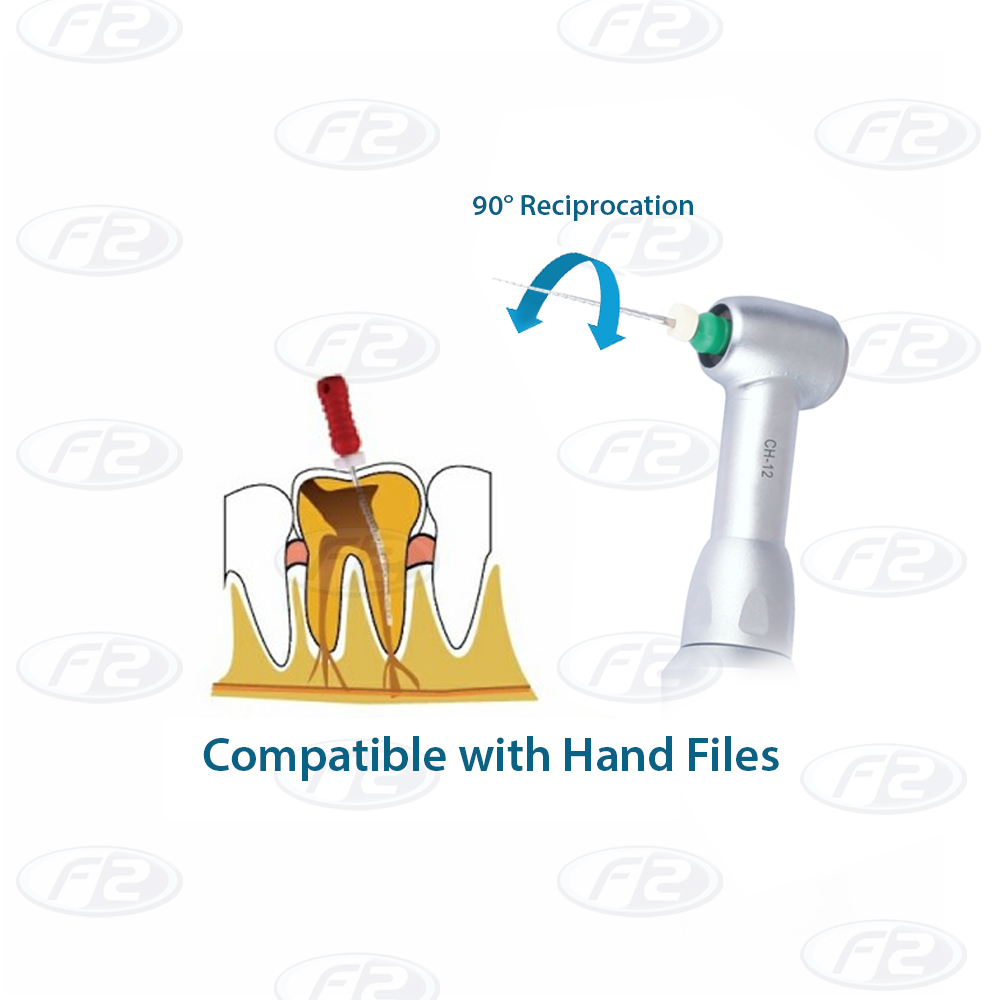

Compatible with use of Endodontic Hand Files.

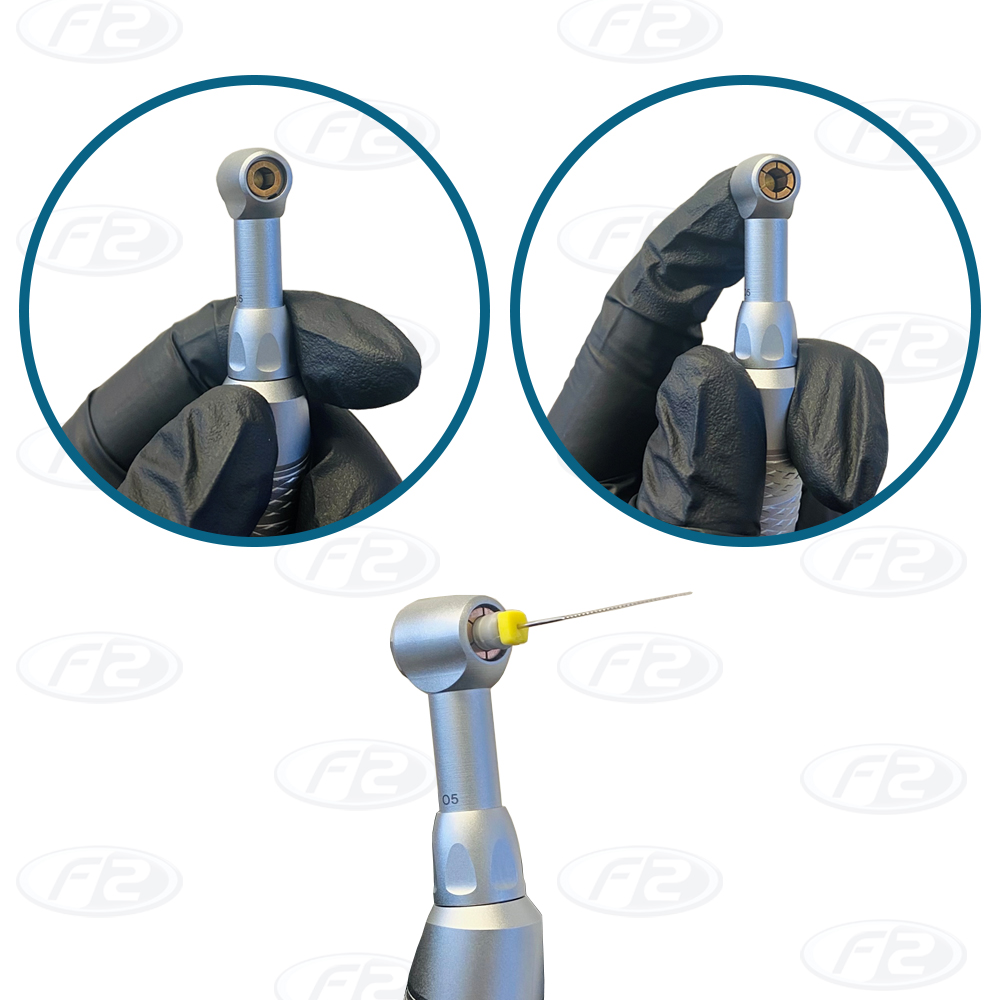

Push Button head for locking & Removal of file attachments.
Maximum temperature of handpiece should not exceed 60°C
Do not immerse in solvents or solutions, or use Dry-heat disinfection. Sterilise handpiece using Autoclave to 134°C (22MPa)
Compatible with Attachments:
- ISO 1797-1 Type 1, Diameter 2.35mm, Fitting Length Min. 11mm, Overall Length Max. 23mm. Working Diameter Max. 2mm
- ISO 1797-1 Type 2, Diameter 2.35mm, Fitting Length Min. 33mm, Overall Length Max. 50mm. Working Diameter Max. 2mm
- ISO 1797-1 Type 3, Diameter 1.6mm, Fitting Length Min. 11mm, Overall Length Max. 23mm. Working Diameter Max. 2m
