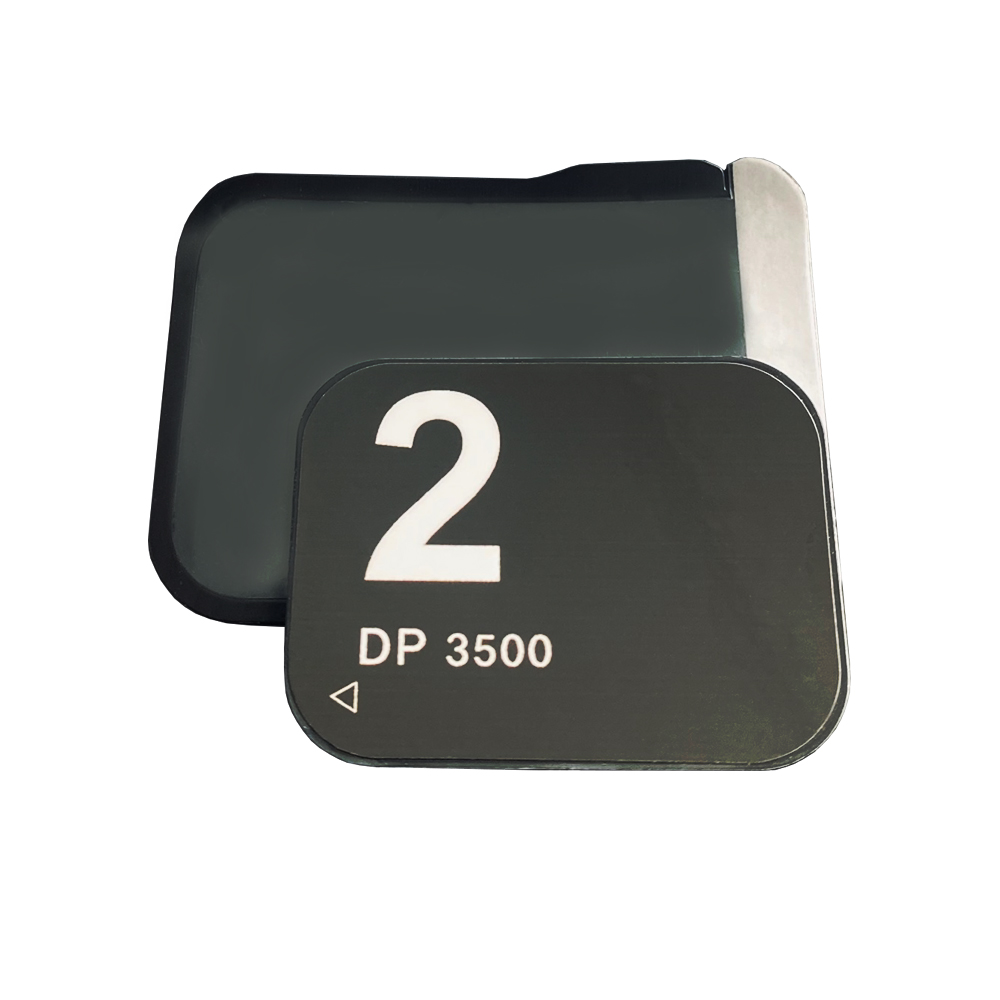

X-Ray Imaging Phosphor Plate – Size 2
- Product code: F2M6002
Thin phosphor X-Ray imaging plate in size 2. (Non- Magnetic)
- Brand: DENTP
- Size Code: DP 3500-02
- Allows for imaging of various tooth positions.
- Size: Size 2.
- Size #2: 31 x 41mm
- Plate Thickness 0.1mm
- Operational in regular room lighting.
- Used up to 2000 times.
Providing clear images of a diagnostic quality that are available in seconds and operate in normal room lighting-eliminating the need for a dark room.
X-Ray Imaging Phosphor Plate – Size 2
- Product code: F2M6002
Thin phosphor X-Ray imaging plate in size 2. (Non- Magnetic)
- Brand: DENTP
- Size Code: DP 3500-02
- Allows for imaging of various tooth positions.
- Size: Size 2.
- Size #2: 31 x 41mm
- Plate Thickness 0.1mm
- Operational in regular room lighting.
- Used up to 2000 times.
Providing clear images of a diagnostic quality that are available in seconds and operate in normal room lighting-eliminating the need for a dark room.
Available as standard or magnetic. F2M6002 Non-Magnetic
Composed of: Phosphorescent Layer, Plastic Base Layer, Protective Film, and Specification Printed Film.
Ensure barrier envelope is used with use of plate. To prolong the life, avoid touching the phosphorescent surface or press hard.
When using a positioning holder, ensure clips are opened and closed correctly, avoid pulling the plate out of any holder to avoid damage.
Do not bend the plate excessively. Plate is flexible but cannot be bent in an extreme manner or breakage may occur.
Specification film may wrinkle (This can also be removed and does not impact the use of the plate)
CLEANING:
Use an alcohol based solution to gently wipe dry with a lint free cloth. Do not expose to water or organic solvents.
Details:
Main component is phosphate alkaline earth compound, using professional spraying equipment to ensure that 0.1 grams of nano-level light-stimulated phosphor particles are evenly coated on PET plastic sheets with a thickness of 3um.
The plate is Medical grade, and independently sealed, with sealed edge and positioner symbol.
Recommended use:
Non-Magnetic Phosphor Plate – Compatible with most of the following scanners: Durr, Air technique, Gendex, Apixia, Ray, Carestream 7200, Fussen, Dentafilm, Woodpecker, Dimage, Tyris, VRN, Sonto, Impixel. *
Not Suitable For: Carestream 7600, Fire CR, Planmeca (These require a plate with specialised chip to read)
(* These brands – Other than Woodpecker – are examples and are not affiliated with or represented by the F2 company in any way. Please note these are recommendations, please check your scanners requirements to ensure correct plates are used. For example, please check whether your scanner requires a regular plate or a plate with magnet. Please check whether your scanner requires a chip to read the plate)
