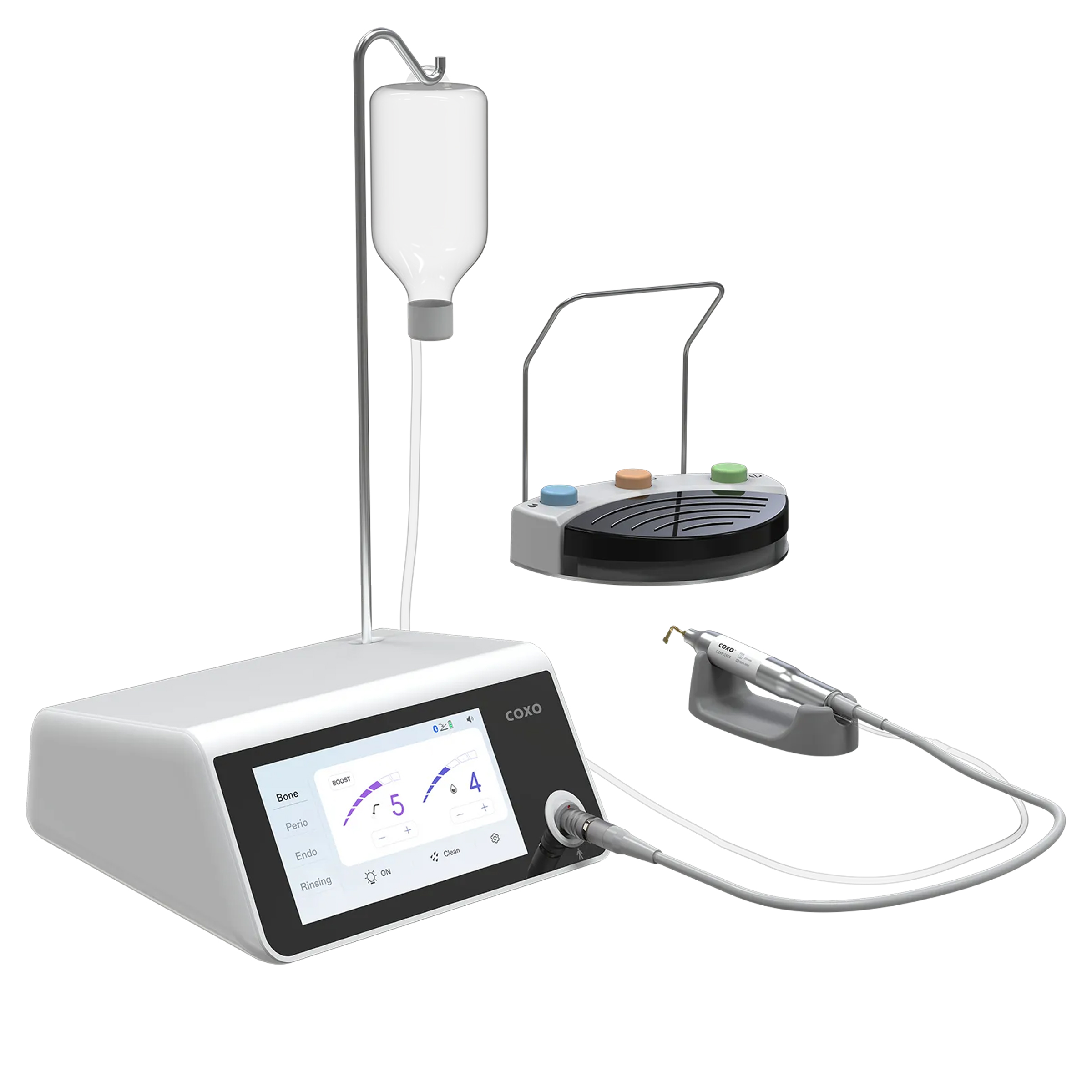

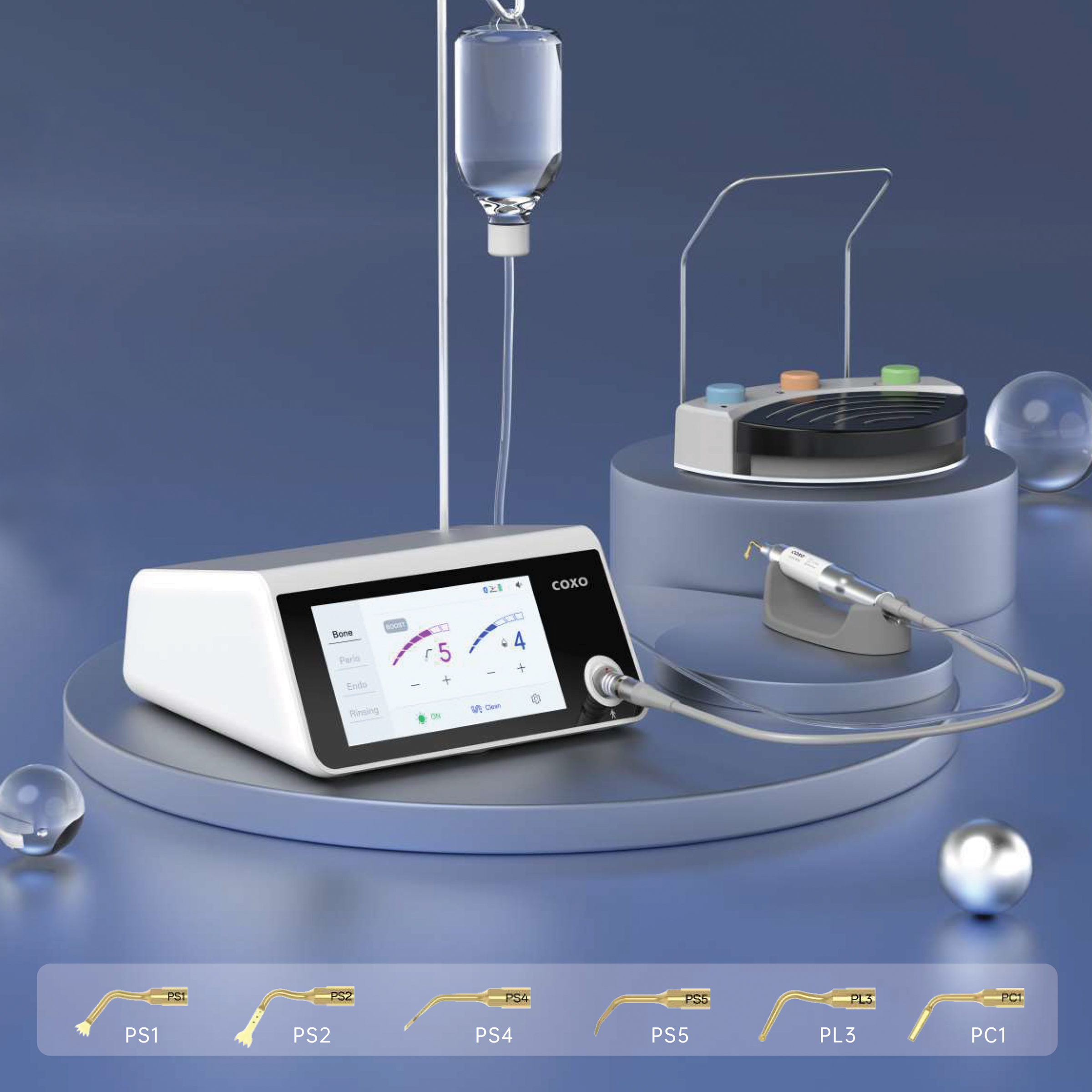

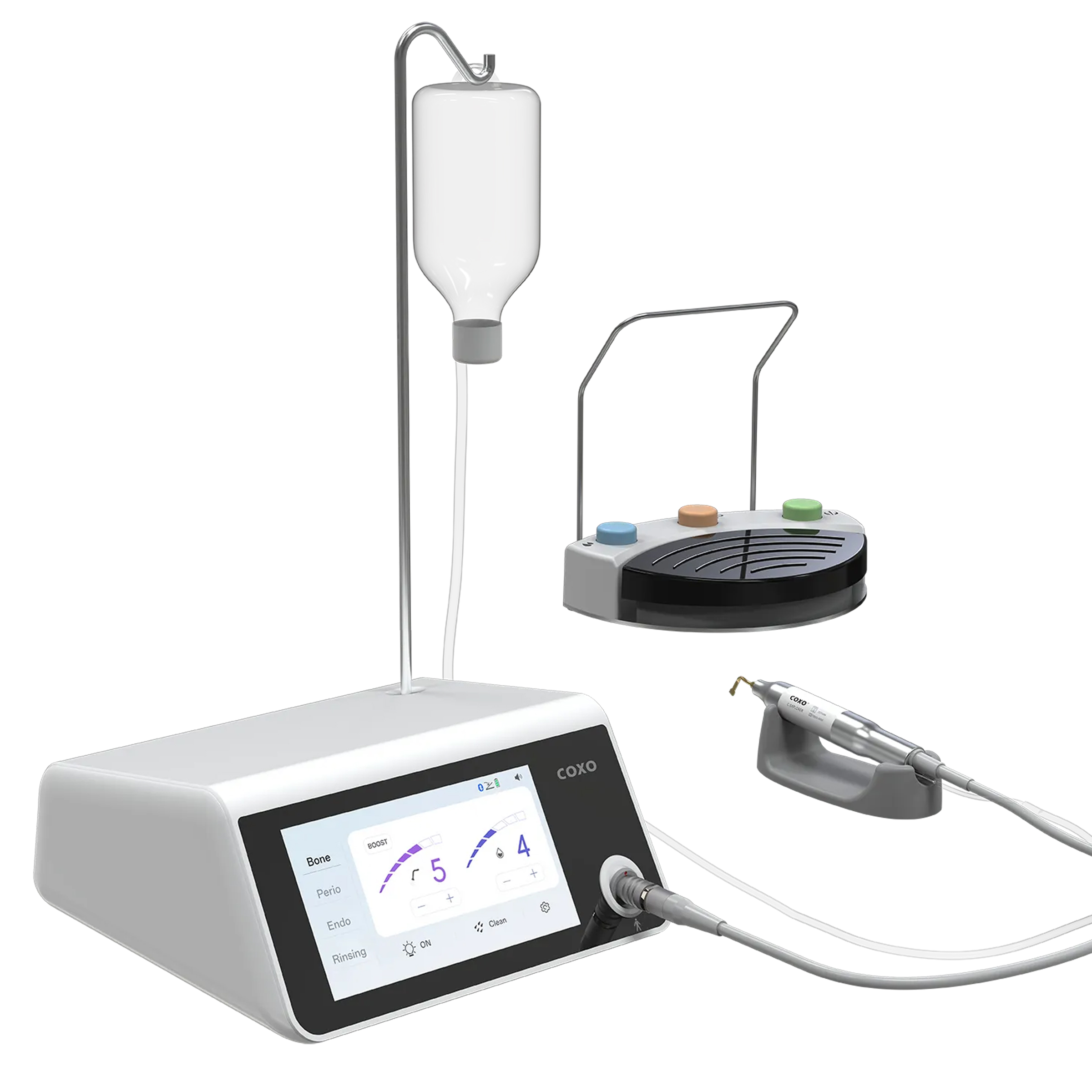

COXO C-EXPLORER PRO Dental Ultrasonic Surgical Motor
- Product code: F2M520
C-Explorer Pro from COXO. Ultrasonic Dental Surgical Motor with Multi Mode operation and LED Light.
Intelligent auto power adjustment for minimally invasive, precise cutting.

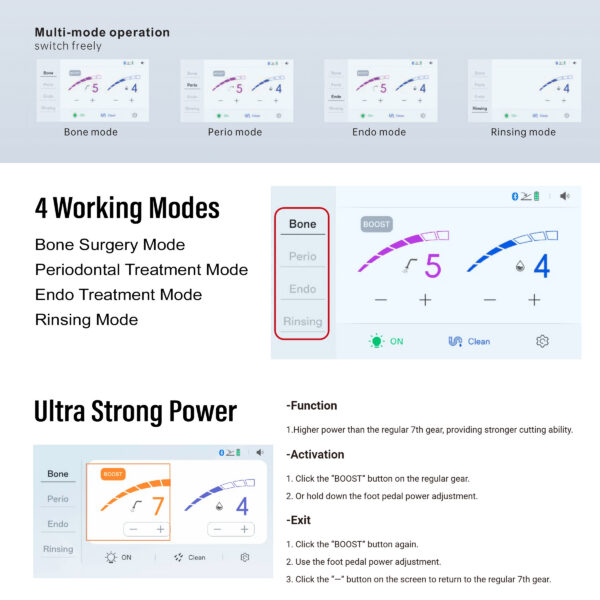

Choose from 4 pre-set working modes: Bone Mode, Perio Mode, Endo Mode, and Rinsing.

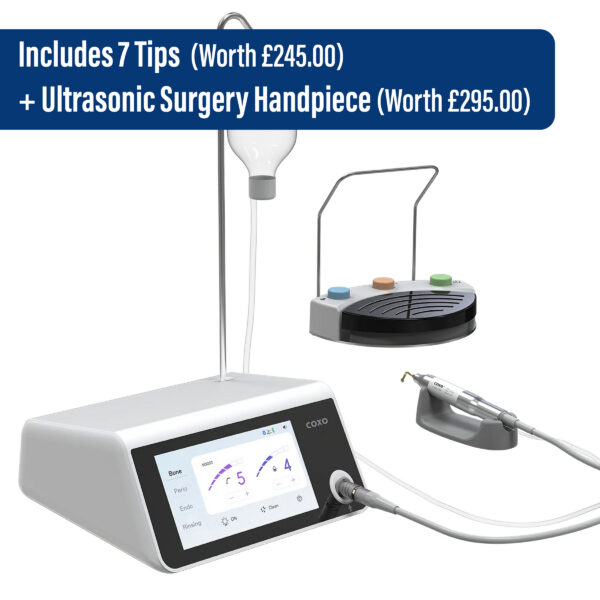

Includes 7 Tips worth £245.00 + Ultrasonic Surgery Handpiece worth £295.00

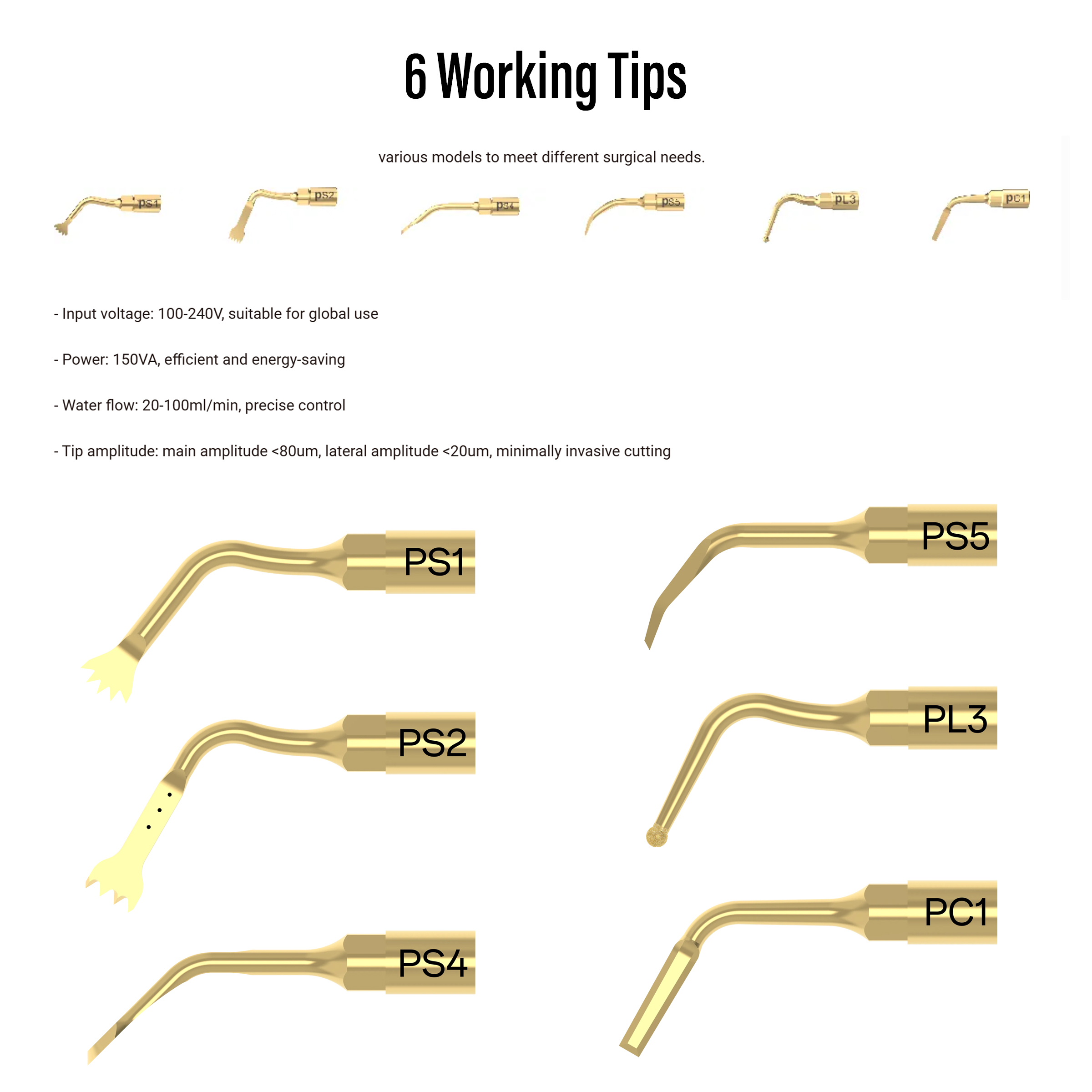

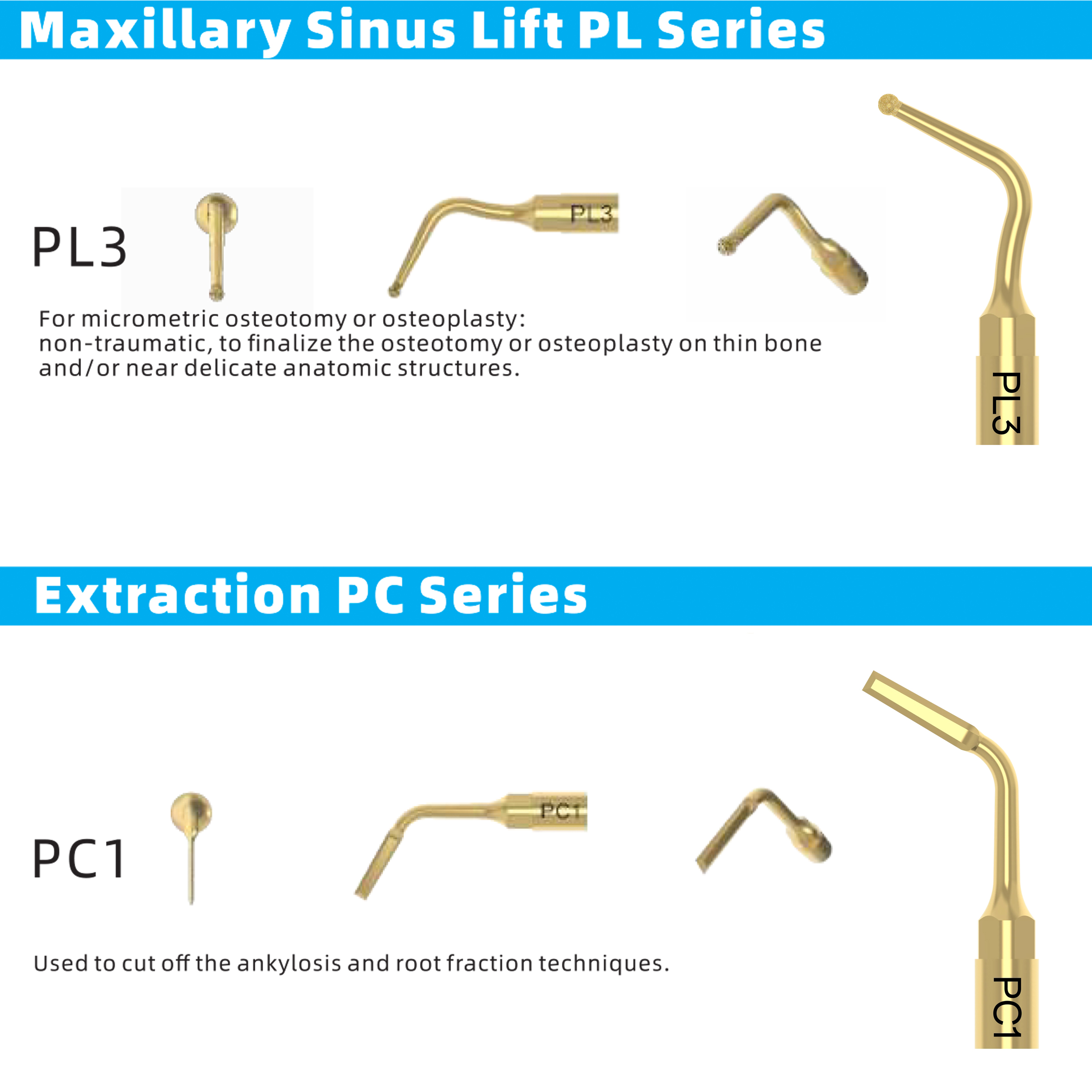

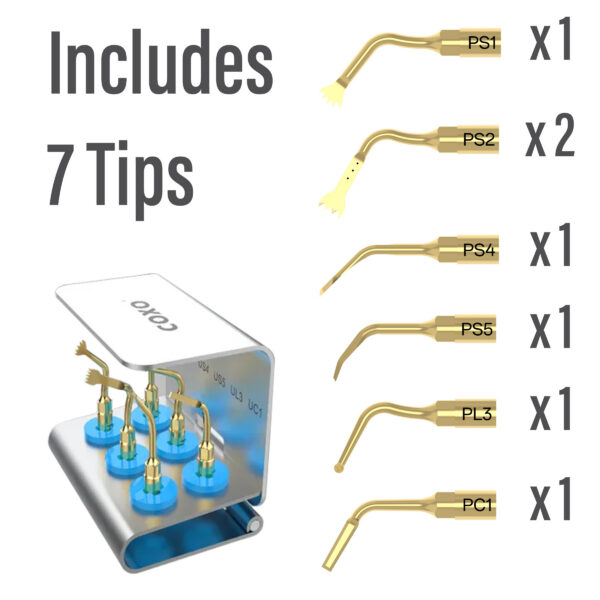

Includes Tips Kit with 7 Tips:
- PS1 x 1
- PS2 x 2
- PS4 x 1
- PS5 x 1

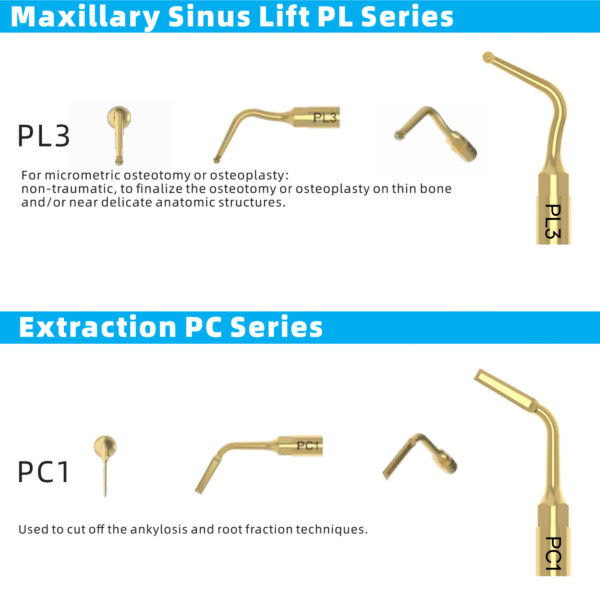

- PL3 x 1
- PC1 x 1

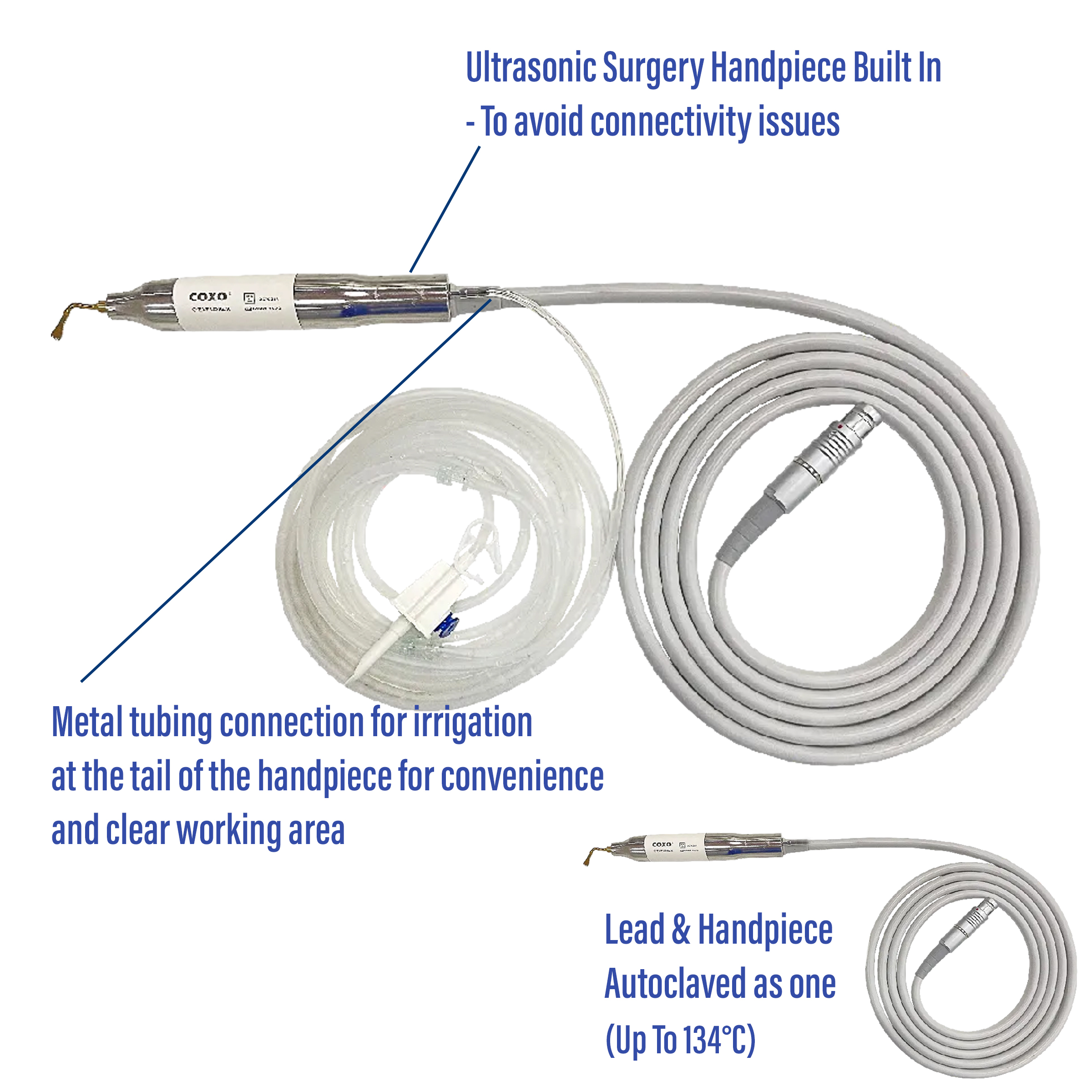

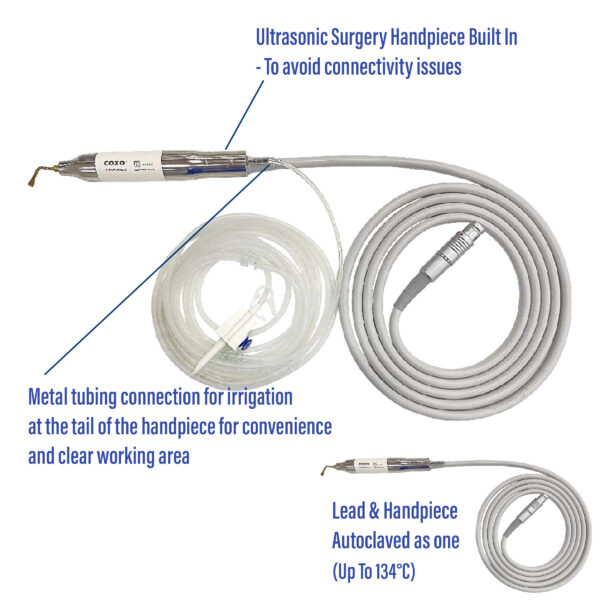

Includes Ultrasonic Lead & Handpiece x 1

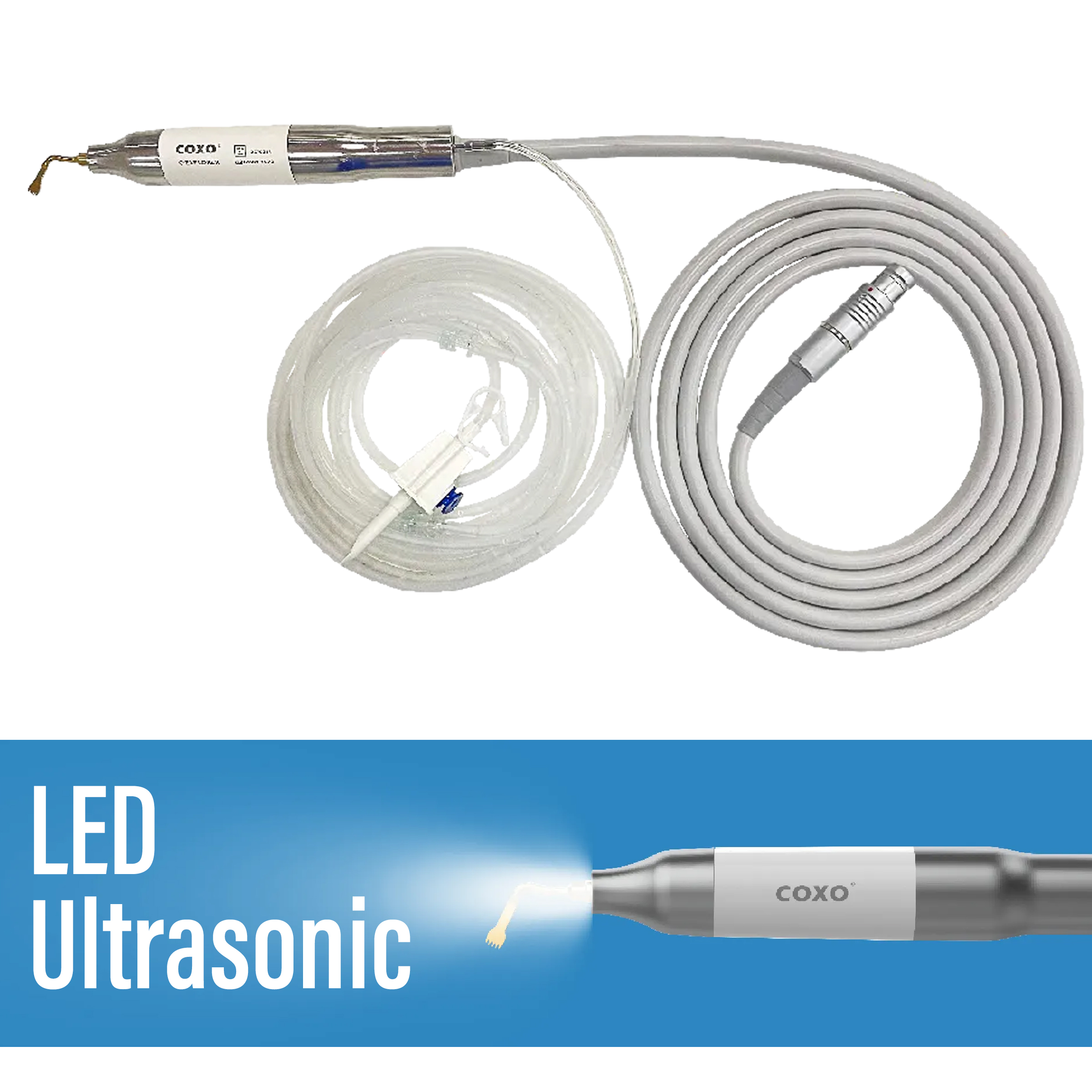

- Built in LED Ultrasonic Surgery Handpiece with Saline Irrigation Connection

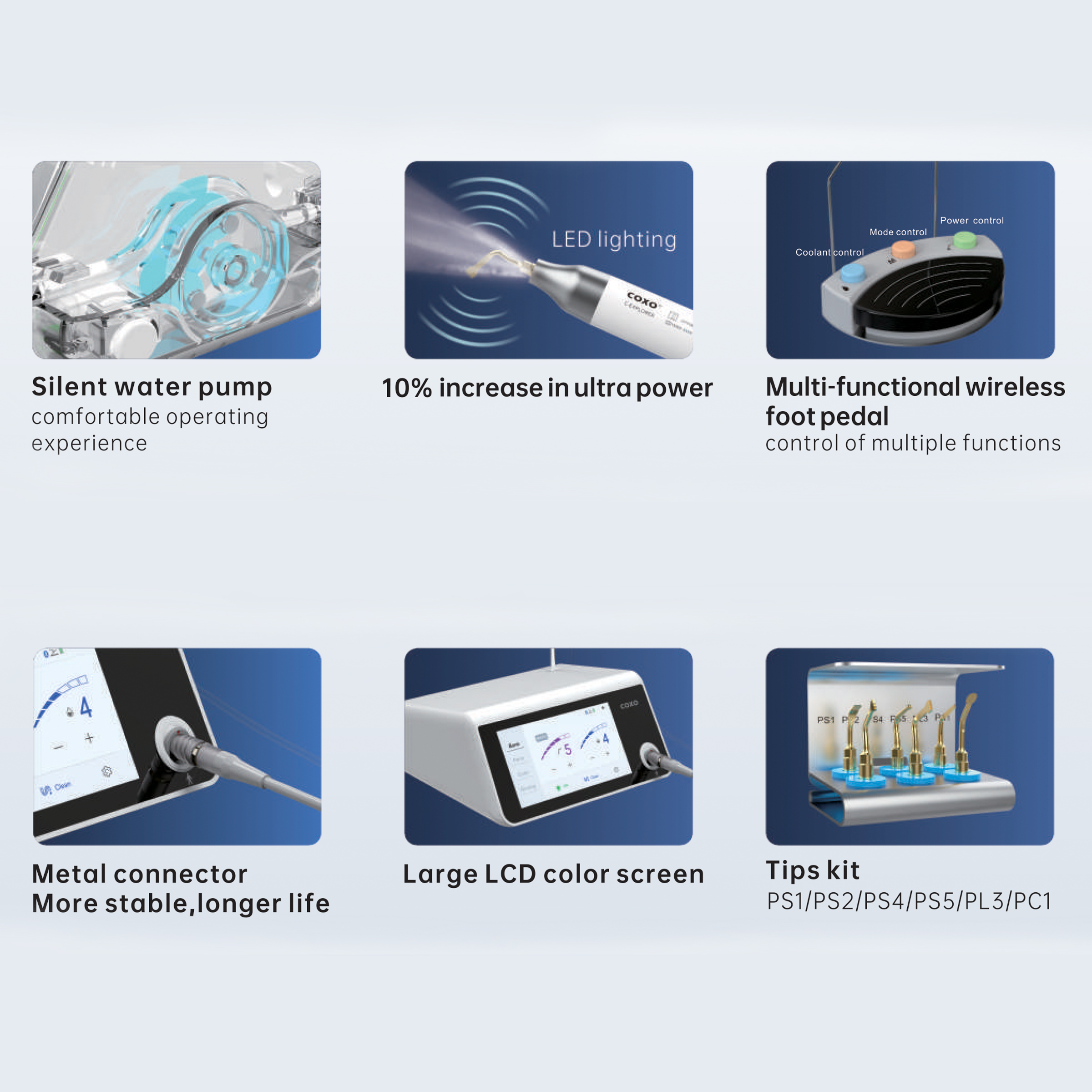

Features:
- Silent Water Pump
- 10% Increase in Ultra Power

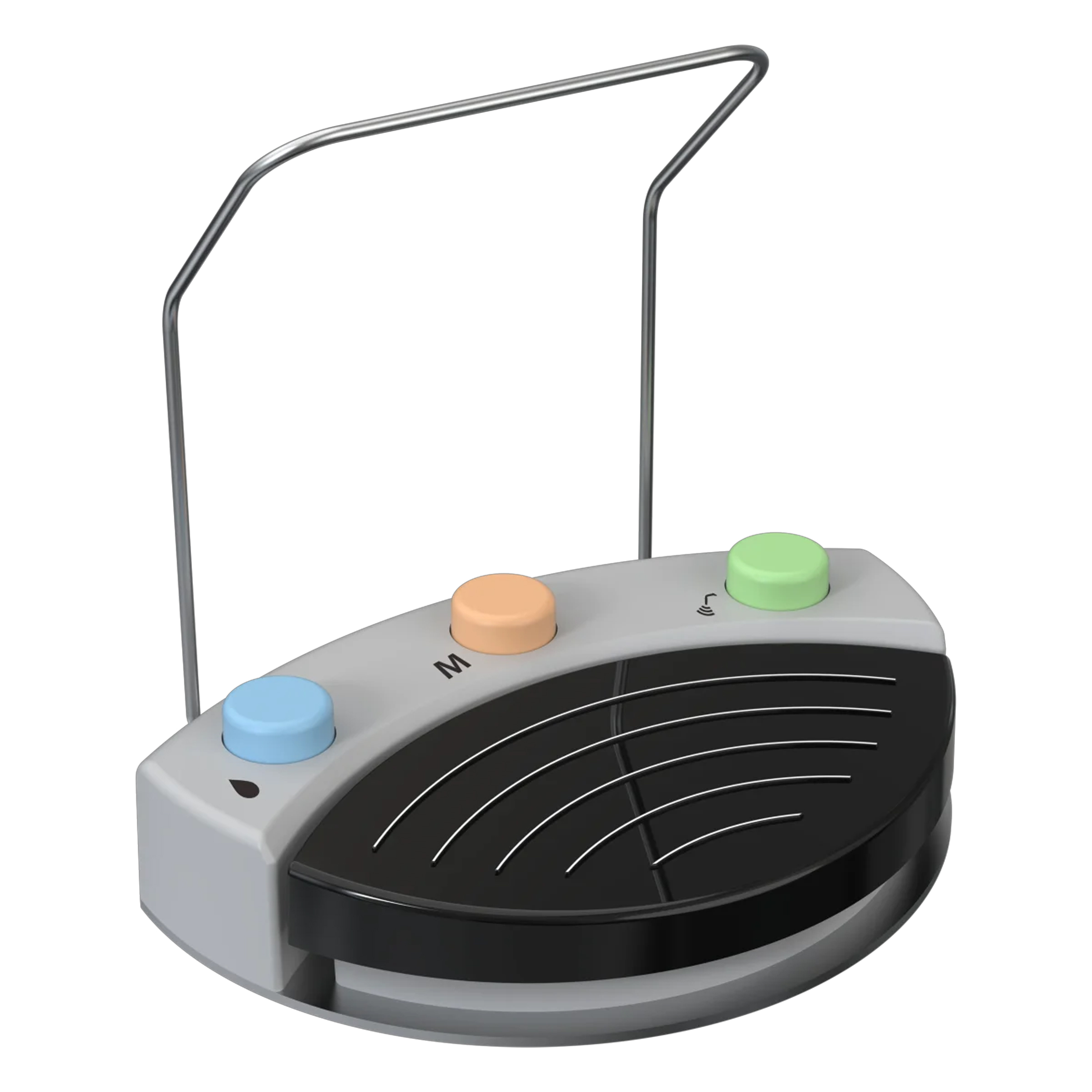

- Multifunctional Wireless Foot Pedal
- Metal Cable Connection (For stable handpiece connection & longer working life)
- Large 7″ Colour Touchscreen
- Lightweight Handpiece – Approx. 108g
COXO C-EXPLORER PRO Dental Ultrasonic Surgical Motor
- Product code: F2M520
C-Explorer Pro from COXO. Ultrasonic Dental Surgical Motor with Multi Mode operation and LED Light.
Intelligent auto power adjustment for minimally invasive, precise cutting.
Choose from 4 pre-set working modes: Bone Mode, Perio Mode, Endo Mode, and Rinsing.
Includes 7 Tips worth £245.00 + Ultrasonic Surgery Handpiece worth £295.00
Includes Tips Kit with 7 Tips:
- PS1 x 1
- PS2 x 2
- PS4 x 1
- PS5 x 1
- PL3 x 1
- PC1 x 1
Includes Ultrasonic Lead & Handpiece x 1
- Built in LED Ultrasonic Surgery Handpiece with Saline Irrigation Connection
Features:
- Silent Water Pump
- 10% Increase in Ultra Power
- Multifunctional Wireless Foot Pedal
- Metal Cable Connection (For stable handpiece connection & longer working life)
- Large 7″ Colour Touchscreen
- Lightweight Handpiece – Approx. 108g

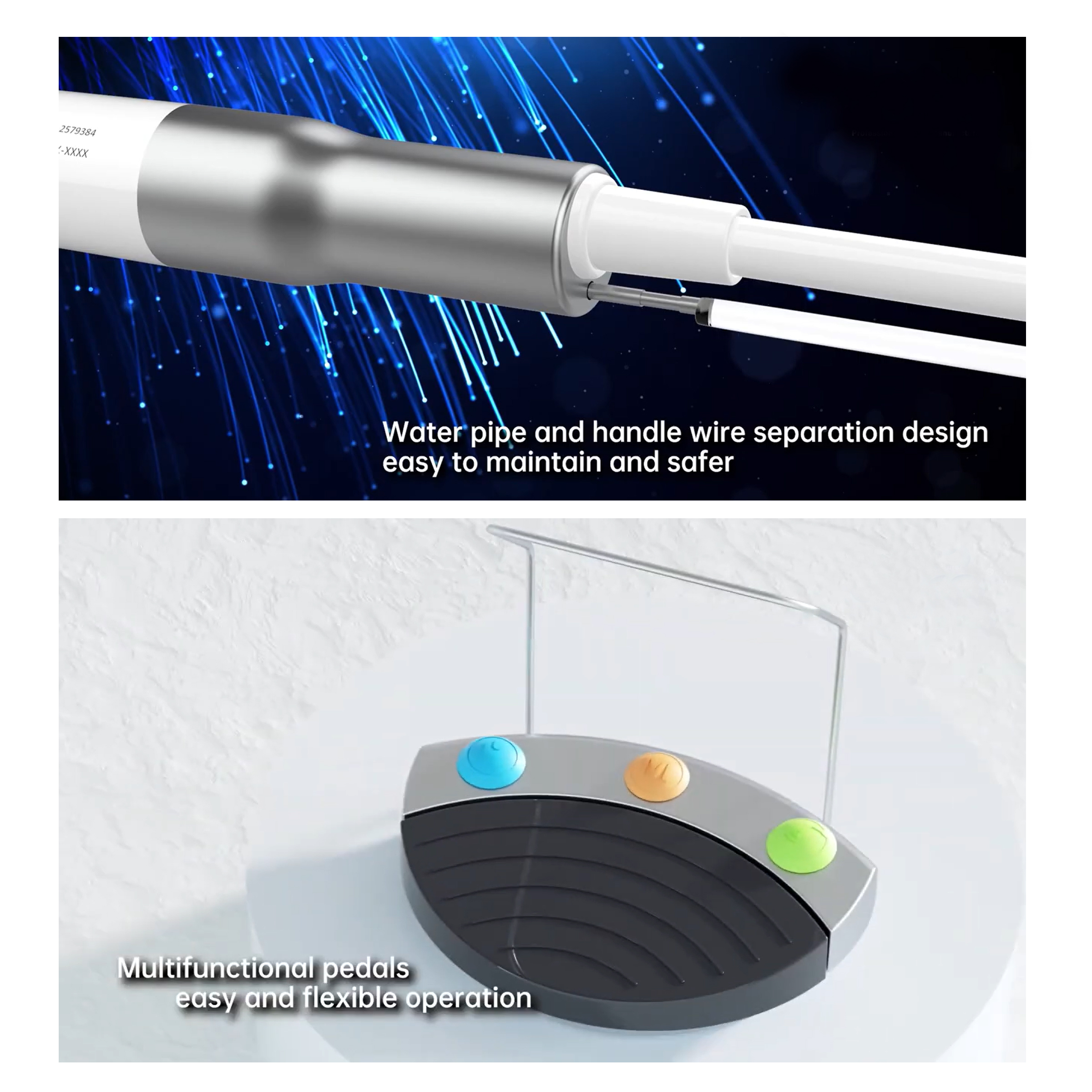

Provides a 7-inch colour touchscreen for simple operation. Detachable water hose and handle cable for easy maintenance and enhanced safety.

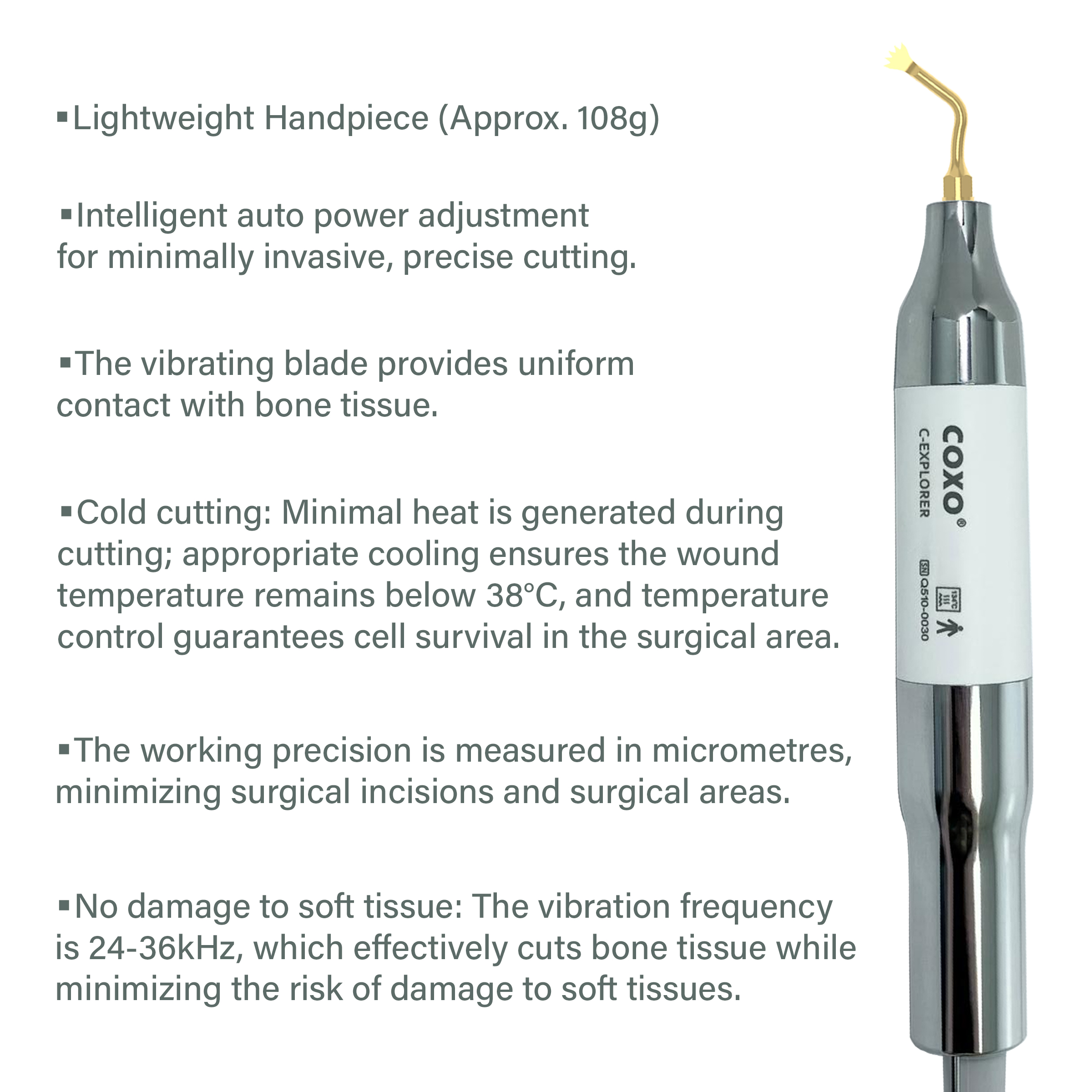

Intelligent power adjustment: Automatically adjusts output power based on cutting resistance to prevent overheating and ensure smoother cutting.

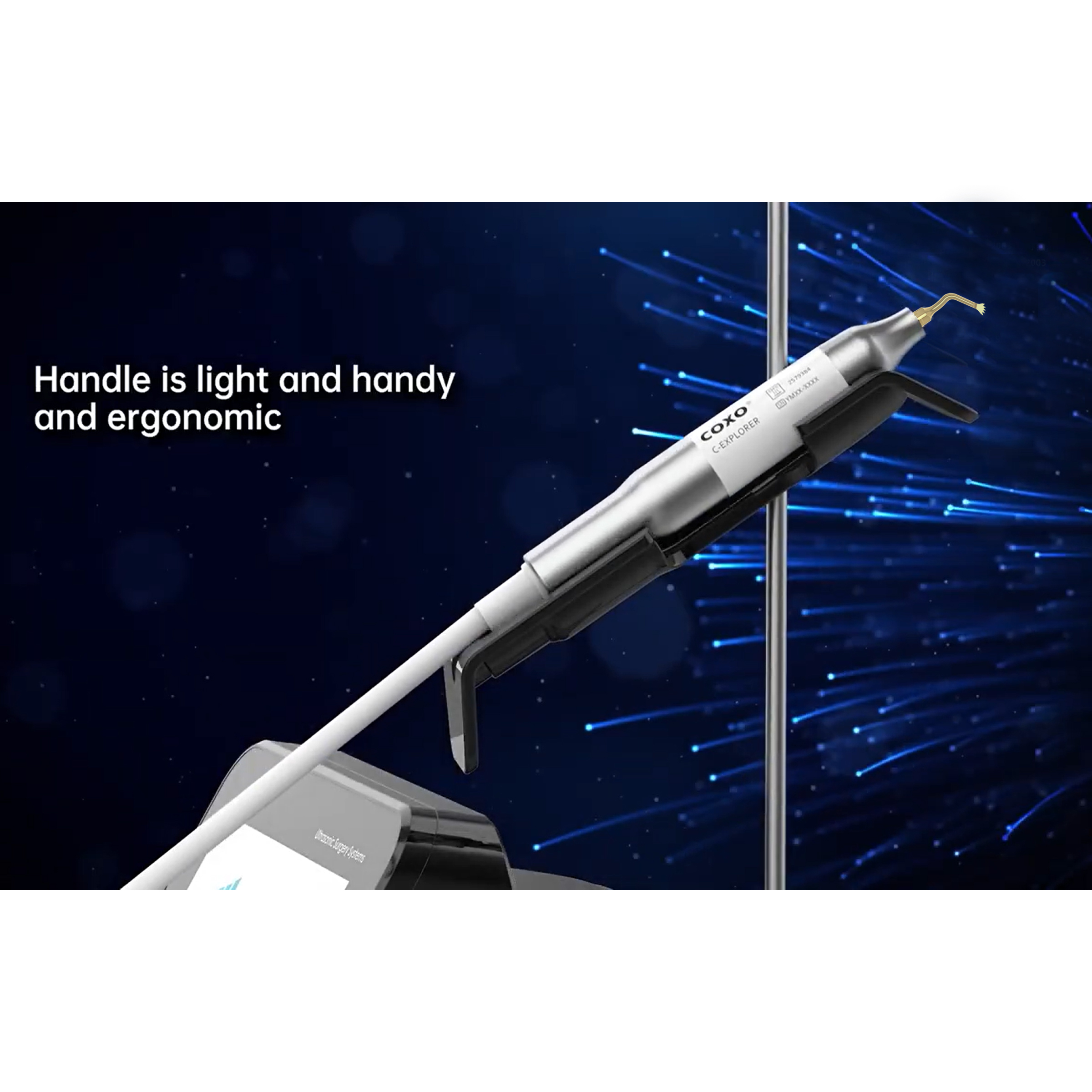

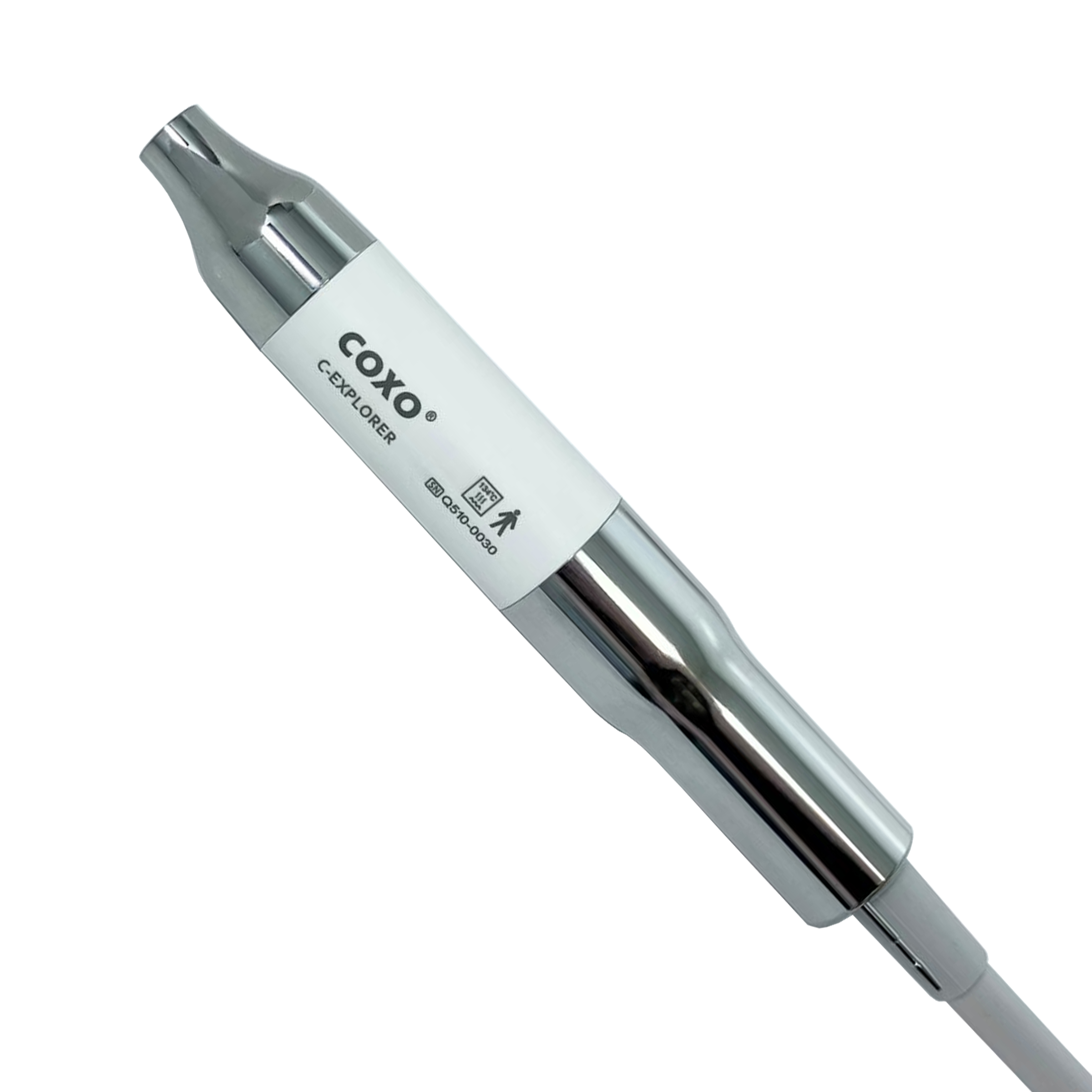

Lightweight handle, dimensions: 130.3*Φ21, weight approximately 108g.
Minimally invasive cutting:

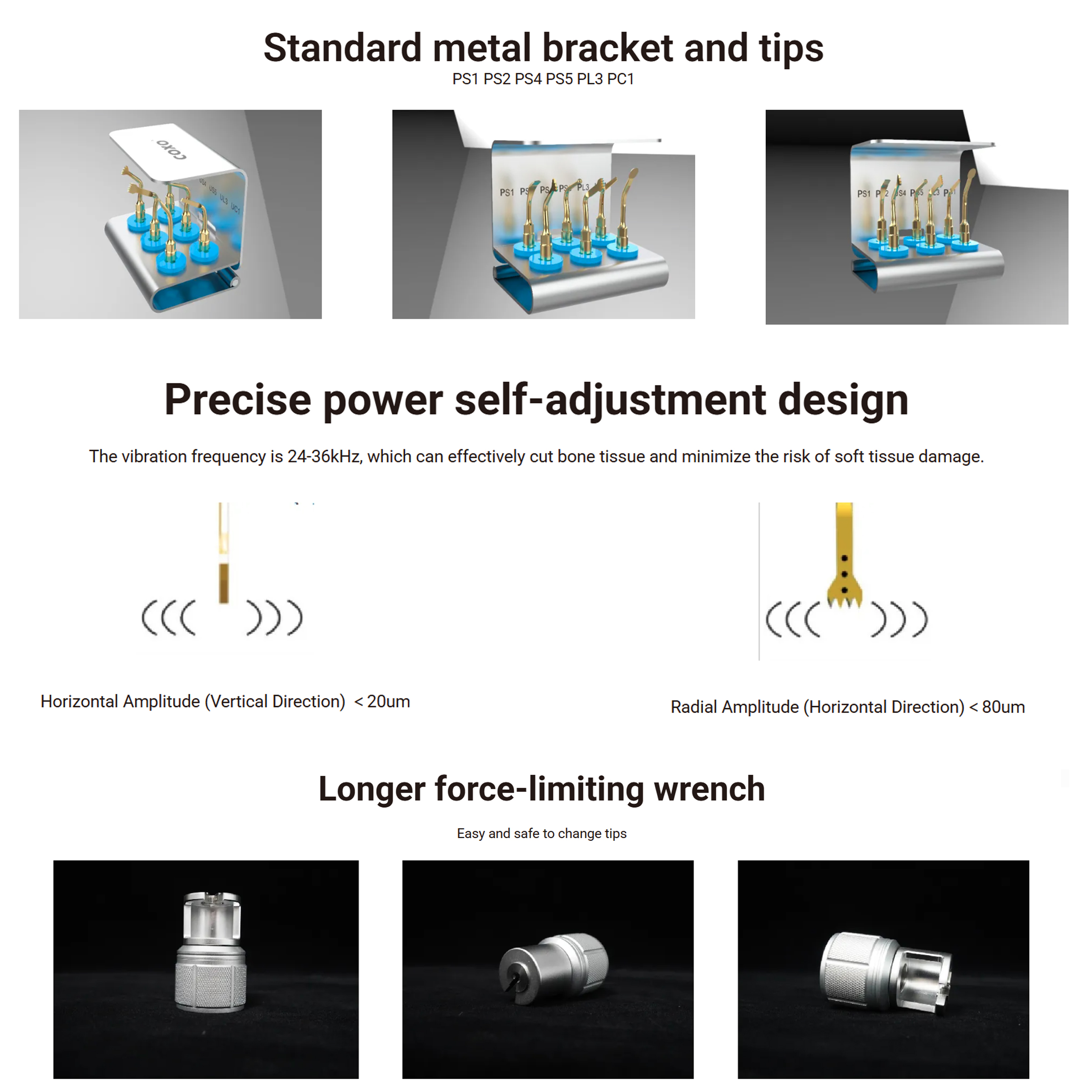

The radial amplitude (horizontal direction) of the working tip is less than 80μm, and the lateral amplitude (vertical direction) is less than 20μm, which are imperceptible to the naked eye. The vibrating blade provides uniform contact with bone tissue while rapidly removing ground bone tissue and bone powder from the surgical area.
The working precision is measured in micrometres, minimizing surgical incisions and surgical areas (minimum surgical incision length 3.5mm, width 0.5mm), and requires only minimal force to operate; the cutting trajectory is unrestricted.
No damage to soft tissue: The vibration frequency is 24-36kHz, which effectively cuts bone tissue while minimizing the risk of damage to soft tissues (nerves, blood vessels, and mucous membranes, etc.).

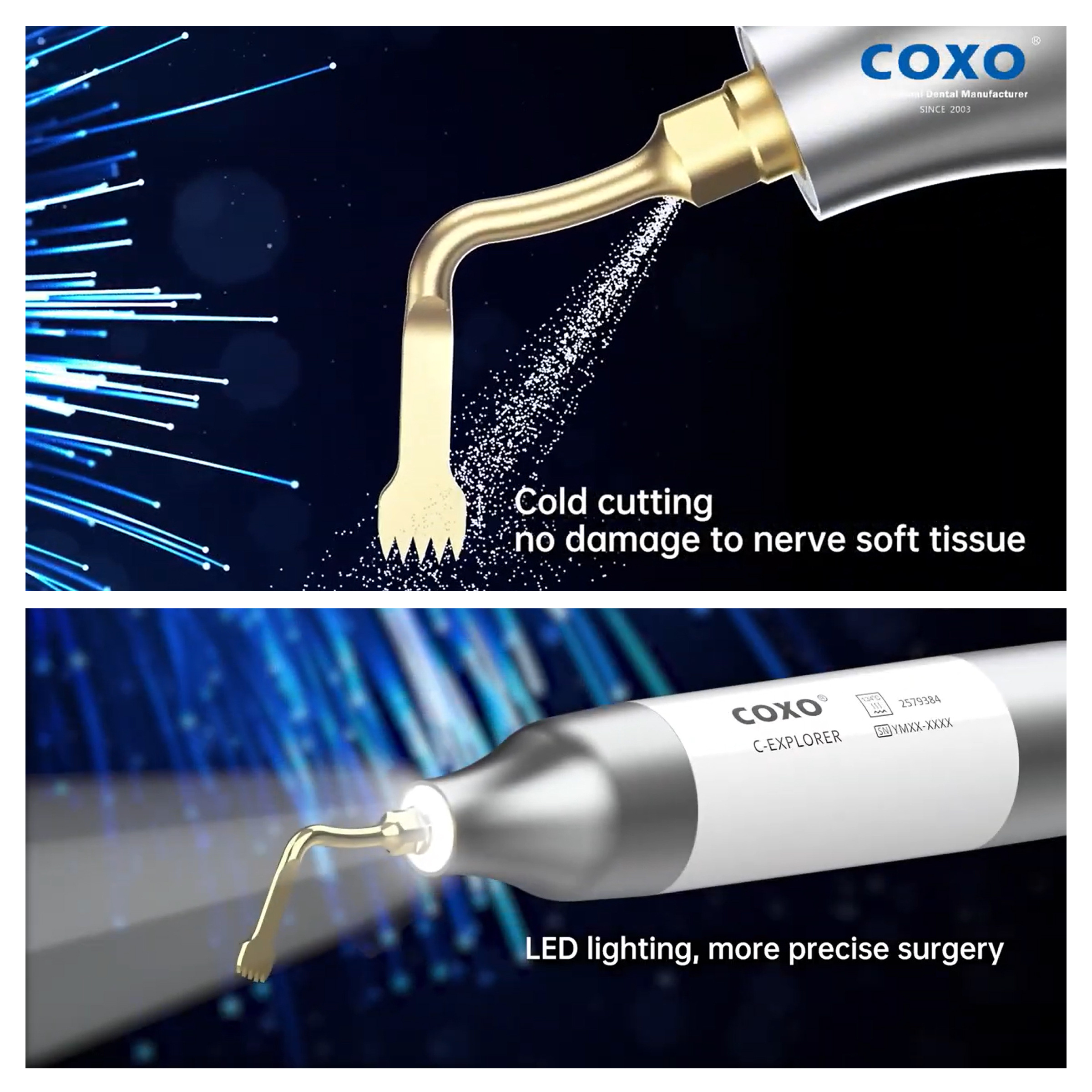

Cold cutting: Minimal heat is generated during cutting; appropriate cooling ensures the wound temperature remains below 38℃, and temperature control guarantees cell survival in the surgical area.
Included:
- Main Unit (Motor)
- Handpiece Cable (Cable with LED Ultrasonic Handpiece Built In)
- Multi Way Foot Pedal
- Pedal Bracket (Handle) x 1
- Sterilisation tray for cable x 1
- Ultrasonic Tips x 7
- Power Lead with UK Plug x 1
- Saline Hook x 1
- Handpiece Cradle x 1
- Handpiece Stand x 1
- Disposable Saline Tubes x 5
- Tip Sterilisation Holder x 1
- Tip Torque Wrench x 1
- Replacement LED for Handpiece x 1
- Replacement Fuse x 2
- Saline Irrigation Clips x 5
- User Manual x 1
- Getting Started – Tips Sheet x 1
- Clip Lock Metal Carry / Storage Case x 1
Specifications:
- Power-supply voltage: 100-240V 50/60Hz 150VA
- Radial amplitude: 8-63um
- Transverse amplitude: 1.5 -12um
- Working tips frequency: 30kHz ± 15%
- Device for intermittent operation: 60s ON, 10s OFF
- Fuses: 3.15AT 250V
- Maximum water flow: 100ml/min
- Water volume settings: 7 gears
- LED light settings: On, Off, Auto
- Weight(kg): 2.4
- Handle: 130.3*Φ33.5mm

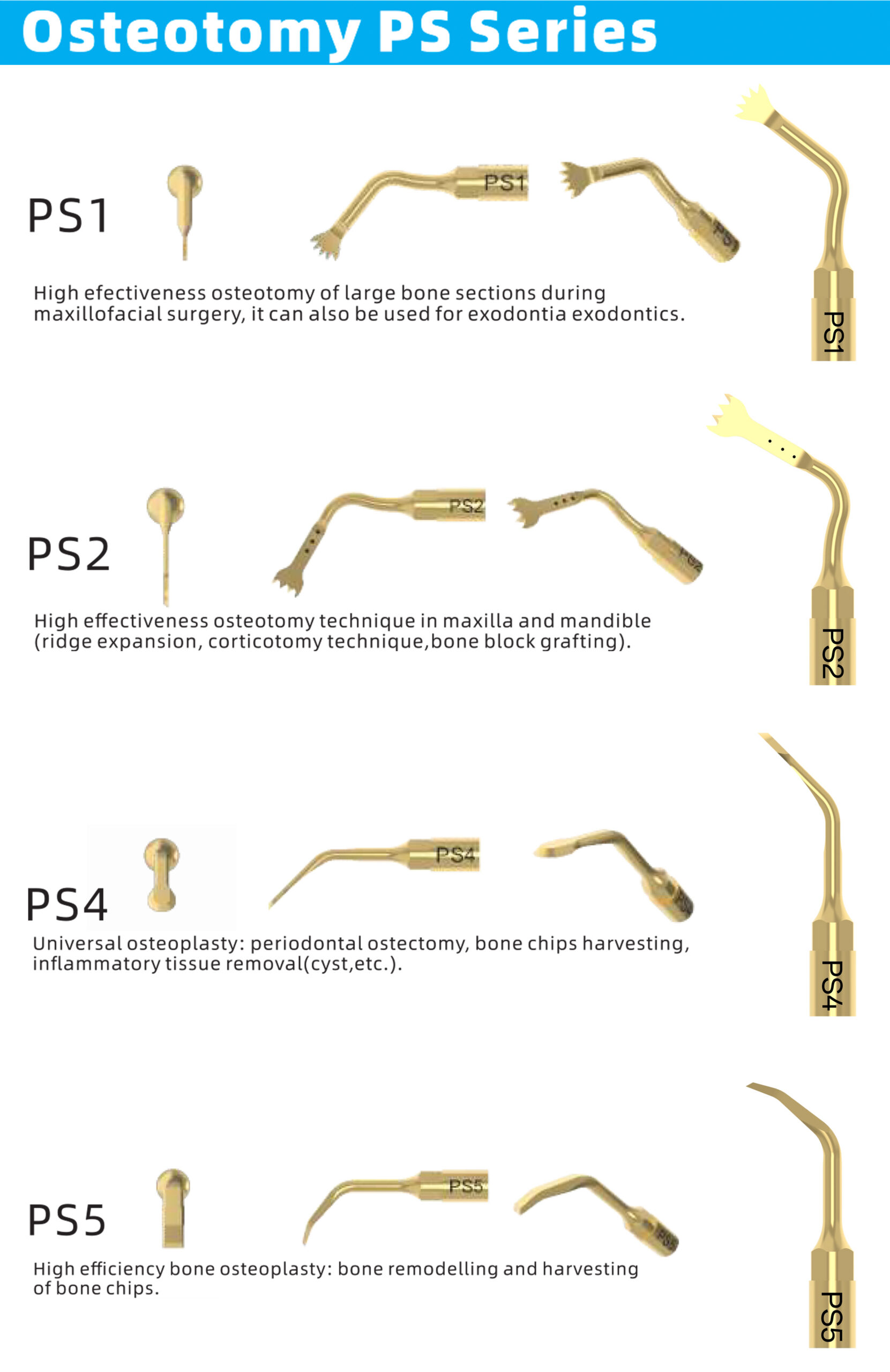

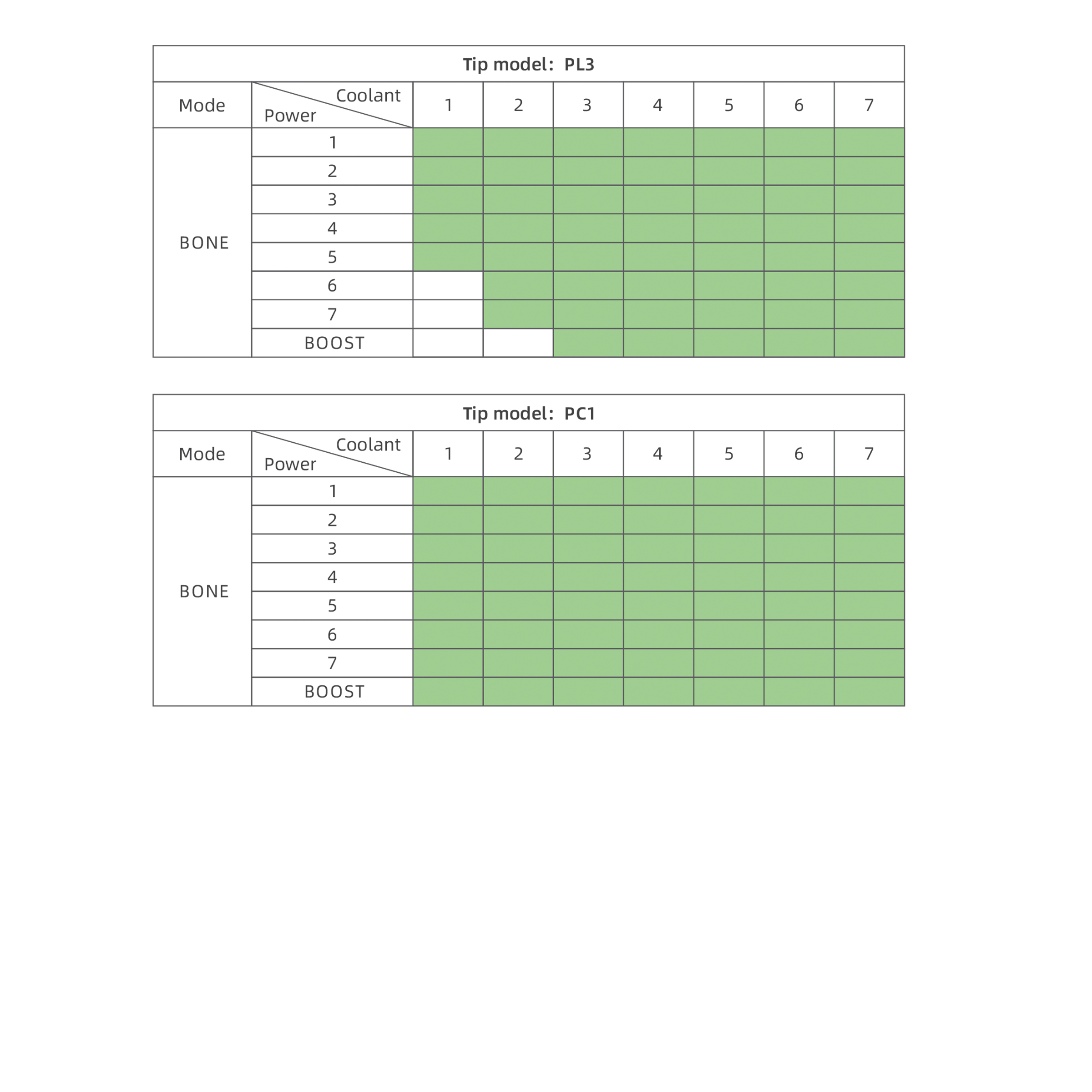

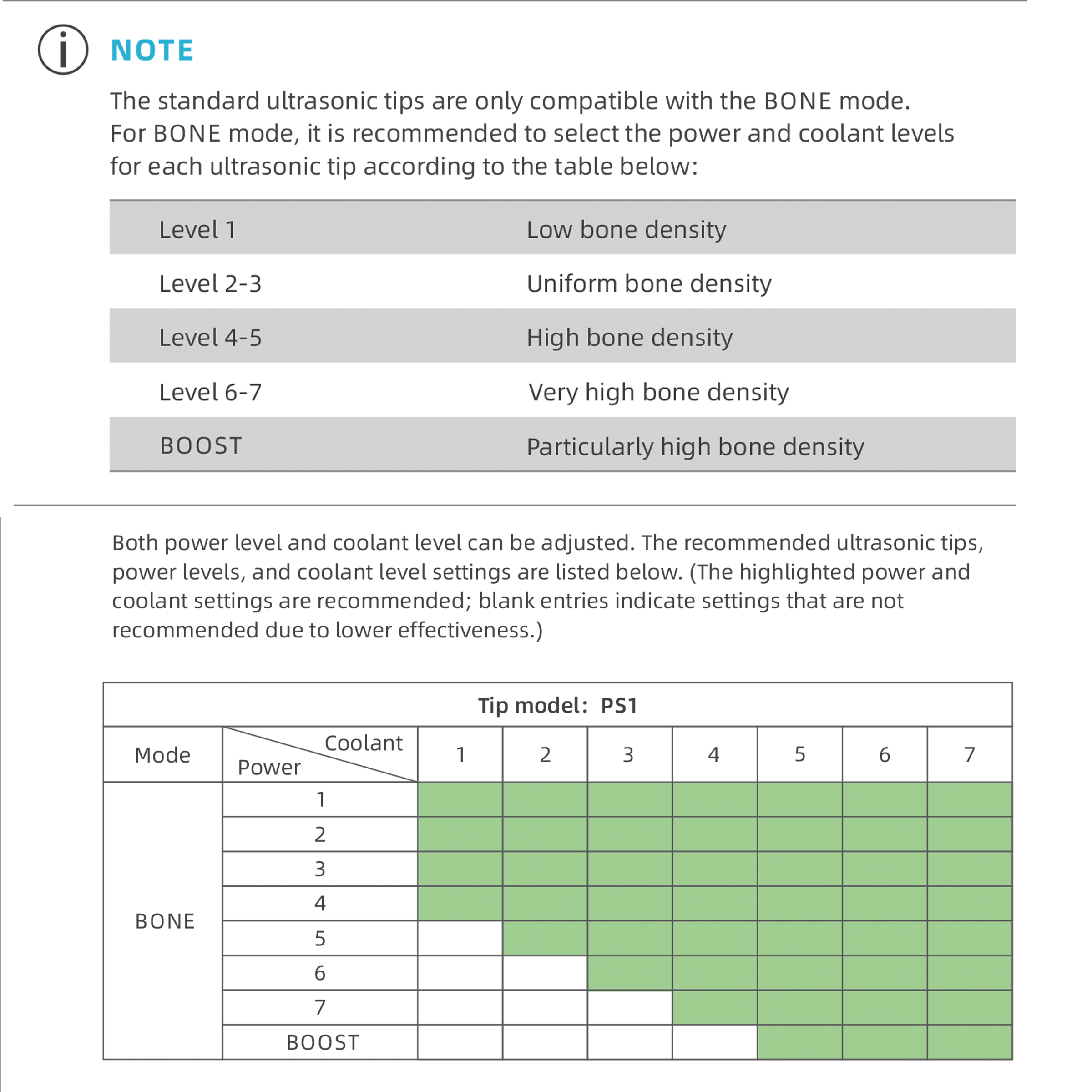

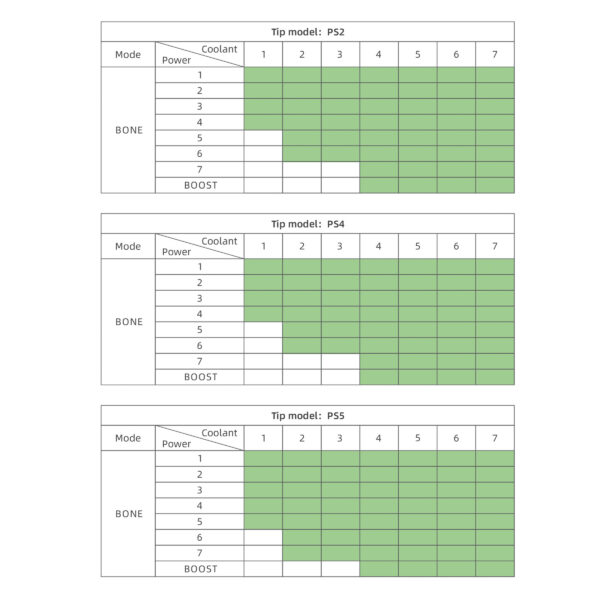

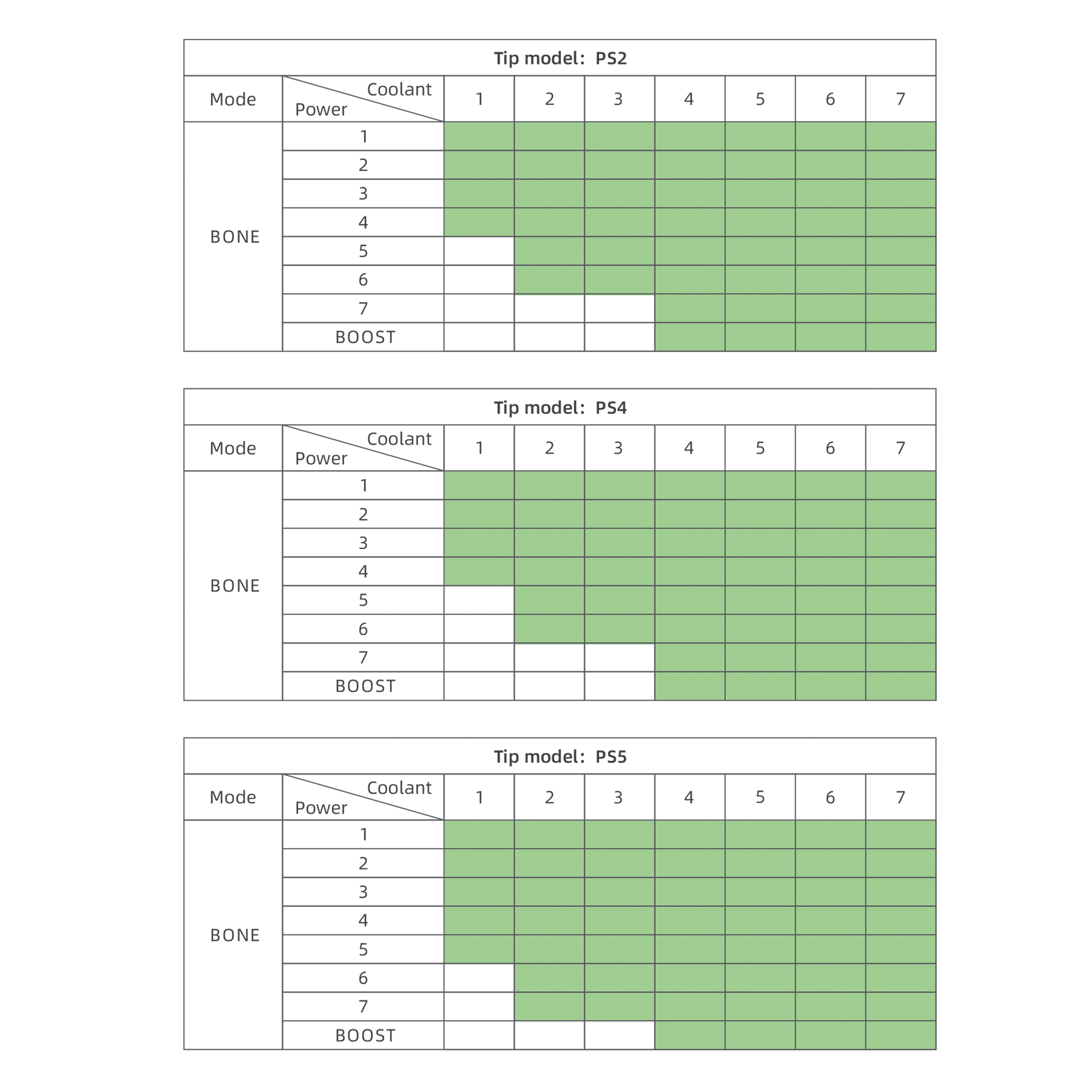

- Tips Included (basic kit): PS1/PS2/PS4/PS5/PL3/PC1
